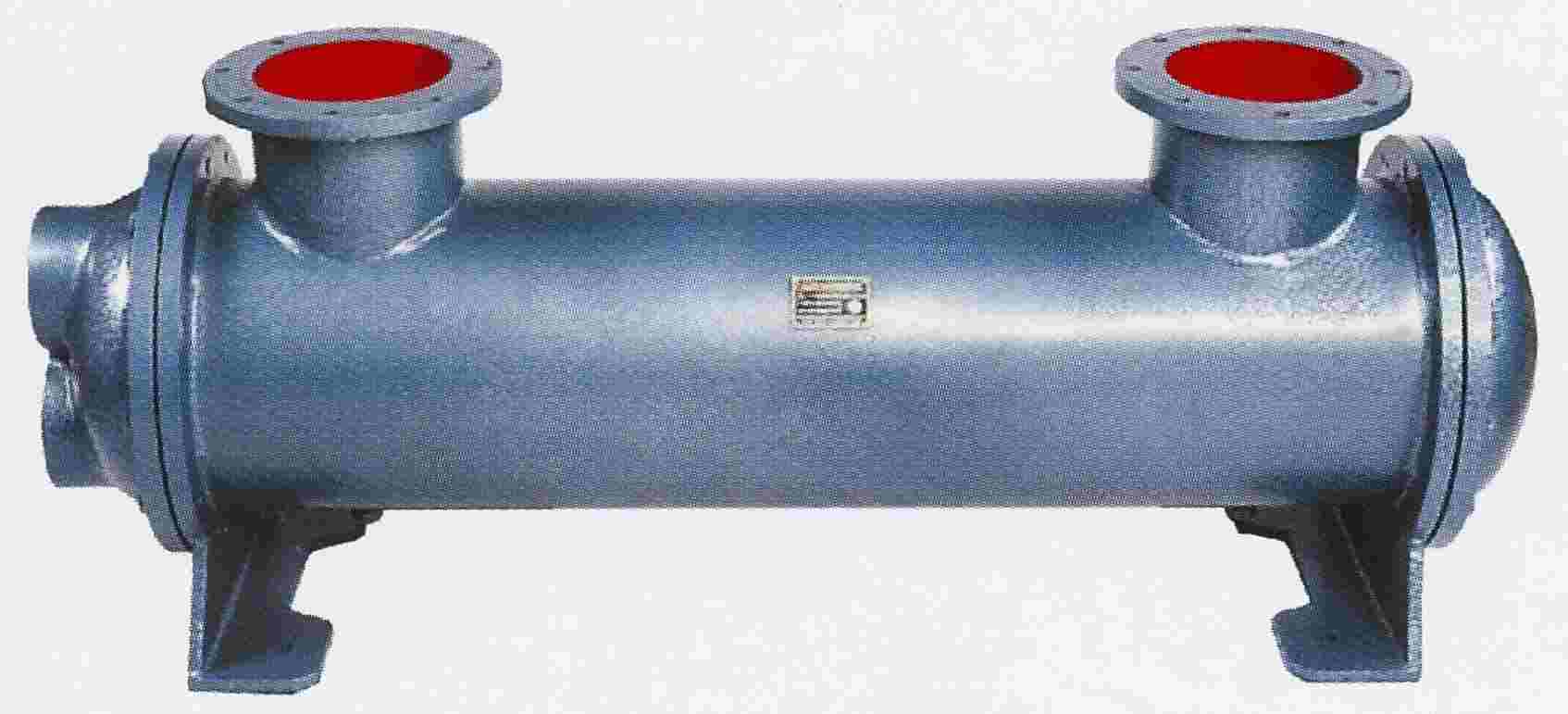

Marine Heat Exchangers round type |
|
| |
CONTACT DETAILS
Street Nr 2, Industrial Park Schisto, Perama
MEK Building, 2nd floor
P.O.Box 3310
Phone 0030-210-4177646
Fax 0030-210-4177606
e-mail: lgds@otenet.gr
Tel: +30 210 4177646
Fax: +30 210 4177606
lgds@otenet.gr
|
| |
|
| |
 |
|
 |
|
|
K1000 |
|
|
| |
|
|
|
|
|
|
|
SUITABLE FOR : 800 ÇÑ
COOLING SURFACE : 4,23 Ì2
DIMENSIONS(LxW÷H): 896÷200÷393 ÌÌ /
WEIGHT: 85 KGS
SEA WATER FLOW K1000 at 13.90m3/hr.
No. of cooling tubes 196
Diameter of tubes (mm) 9,5
Thickness of tube wall(mm) 0,5
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
K1300 |
|
|
| |
|
|
|
|
|
|
|
SUITABLE FOR : 1000 ÇÑ
COOLING SURFACE : 5,8 Ì2
DIMENSIONS(LxW÷H): 1145÷200÷393 ÌÌ
WEIGHT: 97 KGS
SEA WATER FLOW K1300 at 13.90m3/hr.
No. of cooling tubes 196
Diameter of tubes (mm) 9,5
Thickness of tube wall(mm) 0,5
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Ê1600 |
|
|
| |
|
|
|
|
|
|
|
SUITABLE FOR : 1600 ÇÑ
COOLING SURFACE : 9,82 Ì2
DIMENSIONS(LxW÷H): 1223÷350÷465 ÌÌ
WEIGHT: 140 KGS
SEA WATER FLOW K1600 at 18.10m3/hr.
No. of cooling tubes 336
Diameter of tubes (mm) 9,5
Thickness of tube wall (mm) 0,5
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Ê1800 |
|
|
| |
|
|
|
|
|
|
|
SUITABLE FOR : 1800 ÇÑ
COOLING SURFACE : 12,65 Ì2
DIMENSIONS(LxW÷H): 1510÷350÷465 ÌÌ
WEIGHT: 164 KGS
SEA WATER FLOW K1800 at 18.10m3/hr.
No. of cooling tubes 336
Diameter of tubes (mm) 9,5
Thickness of tube wall (mm) 0,5
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
